Albion Cleader Rail and Rafter Stays
Cleader Angles & Rafter Stays
Cleader angles are manufactured from pre-hot dipped galvanized mild steel and cold roll formed into an angle section 45 x 45 x 2.0mm thickness and 75 x 75 x 2.0mm thickness

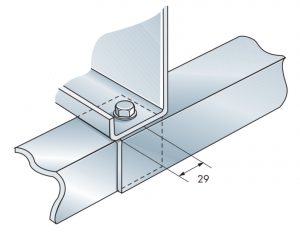

– 14mm Ø hole 29mm from end of purlin in bottom flange only.
– Alternatively leave plain and use Tekscrew attachments

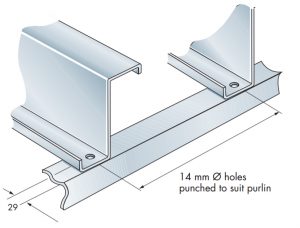

Cleader Joint Detail
Detail shows typical Albion Sections connections. Other arrangements can be supplied to suit individual requirements.
Section Properties
| dia. A mm | t mm | wt Kg/m | Ixx/Iyy cm4 | Ivv cm4 | Iuu cm4 | Zxx/Zyy cm3 |
|---|---|---|---|---|---|---|
| 45 | 2 | 1.36 | 3.52 | 1.35 | 5.68 | 1.07 |
| 75 | 2 | 2.29 | 16.80 | 6.57 | 27.02 | 3.04 |
Rafter Stays/Column Stays

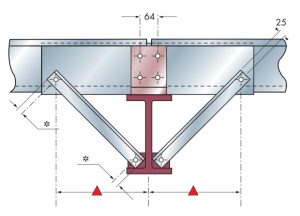

Rafter Stays are manufactured from pre-hot dipped galvanised mild steel and cold roll formed into angle section 45mm x 45mm x 2.0mm thickness.
